Brickledge Forms
Our aluminum brickledge concrete forms are used when adding a brickledge around the outside of a foundation wall.
Drop-In Method

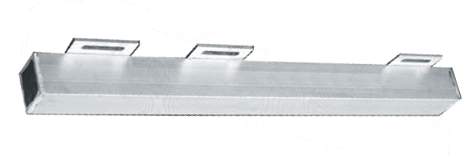

6"x6" Plate Bracket With 4" Slot
Attaches to top of forms with pin and wedge, aligner clamp with 5/8" pin, vise-grips or "C" clamp. Provides more opportunity to align with holes at end rails due to the slotted plates.
Brickledge over 17" in depth has a nailer area provided for simple attachment to the form. This eliminates creeling problems. Also available with 8" and 10" plate.

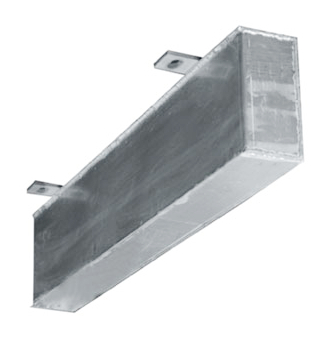

2" Lug Bracket w/ 1” Obround Hole
Attaches to top of forms with pin and wedge, aligner clamp with 5/8" pin, vise-grips or "C" clamp.

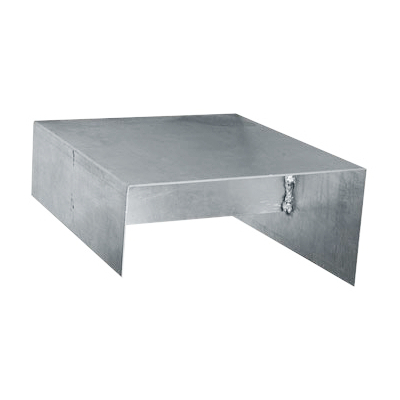

Slipover Brickledge Form
Available in steel or aluminum. Slipover brickledge forms are used to create various sized brickledge fillers. Used in conjunction with Plate or Lug Bracket Brickledge.
Available in sizes up to 24" wide.

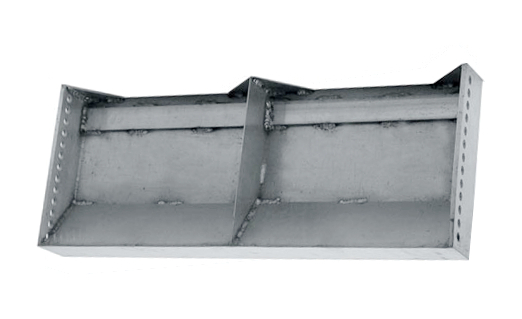

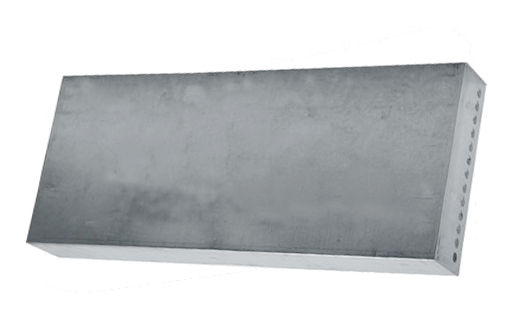

Denver Brickledge
Just as its name implies, this was originally designed for the Denver area.
It's perfect for allowing adjustment to your brickledge depth by pinning to the interior hole of a combination tie.
Offset Method

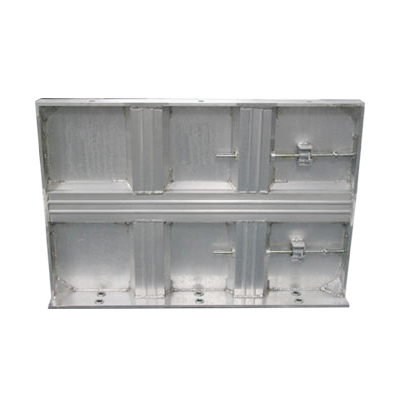

Offset Endbar Panel
Can be built with 2” or 4" offset for brickledge application.
Saddle Bracket
Product #SBK04000000000 - 4"
Product #SBK06000000000 - 6"
Unique brackets that allow another option for brickledge. The brackets pin onto the top rail of the lower form and allows the next stacked concrete forms to be inset 4 inches or 6 inches.
Brickledge Bar
Product #AOT00000000001
The Brickledge Bar permits another option for brickledge. The brackets pin onto the top rail of the lower form, then wood is nailed to under side of bracket. Upper panel is then placed on top of brickledge bar to create a 4" brickledge.
