Deck Assembly

The post, beam, and deck is designed to offer a wide variety of building alternatives.

Deck Assembly

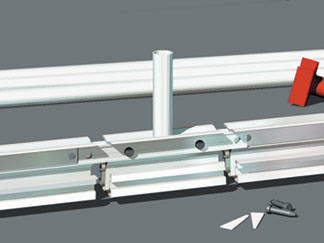

The drop head, beam bars, and beams are assembled using standard pins and wedges. The drop head, beam bars, and beams are assembled using standard pins and wedges.

The drop head, beam bars, and beams are assembled using standard pins and wedges.

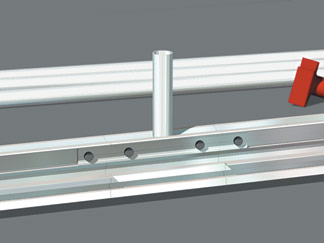

Deck beam fully assembled. Deck beam fully assembled.

Deck beam fully assembled.

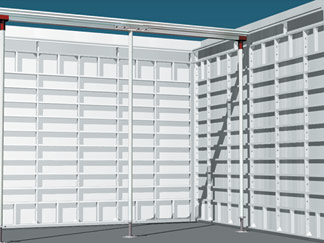

The jack posts are put into place. The jack posts are put into place.

The jack posts are put into place.

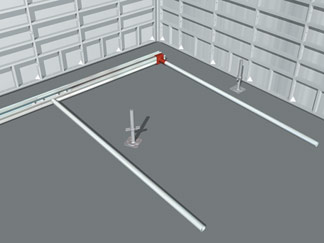

The deck beam assembly is then lifted and put into the desired location. The deck beam assembly is then lifted and put into the desired location.

The deck beam assembly is then lifted and put into the desired location.

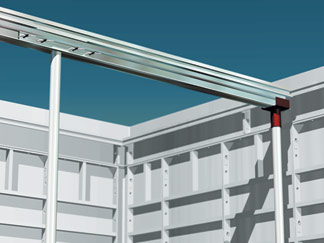

Deck beam assembly in place and ready for deck panels. Deck beam assembly in place and ready for deck panels.

Deck beam assembly in place and ready for deck panels.

The first deck panel is connected to the deck beam assembly and ledger utilizing the deck slide clamp. The first deck panel is connected to the deck beam assembly and ledger utilizing the deck slide clamp.

The first deck panel is connected to the deck beam assembly and ledger utilizing the deck slide clamp.

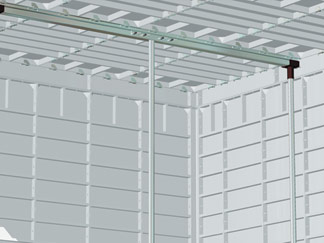

This process is continued until all deck panels are in place. This process is continued until all deck panels are in place.

This process is continued until all deck panels are in place.

An adjustable screw is provided to allow for any adjustments needed in the deck. An adjustable screw is provided to allow for any adjustments needed in the deck.

An adjustable screw is provided to allow for any adjustments needed in the deck.

Once the concrete is placed and at minimum required strength, the deck beam assembly and deck panels can be disassembled, leaving the drop head in place for the required time.
